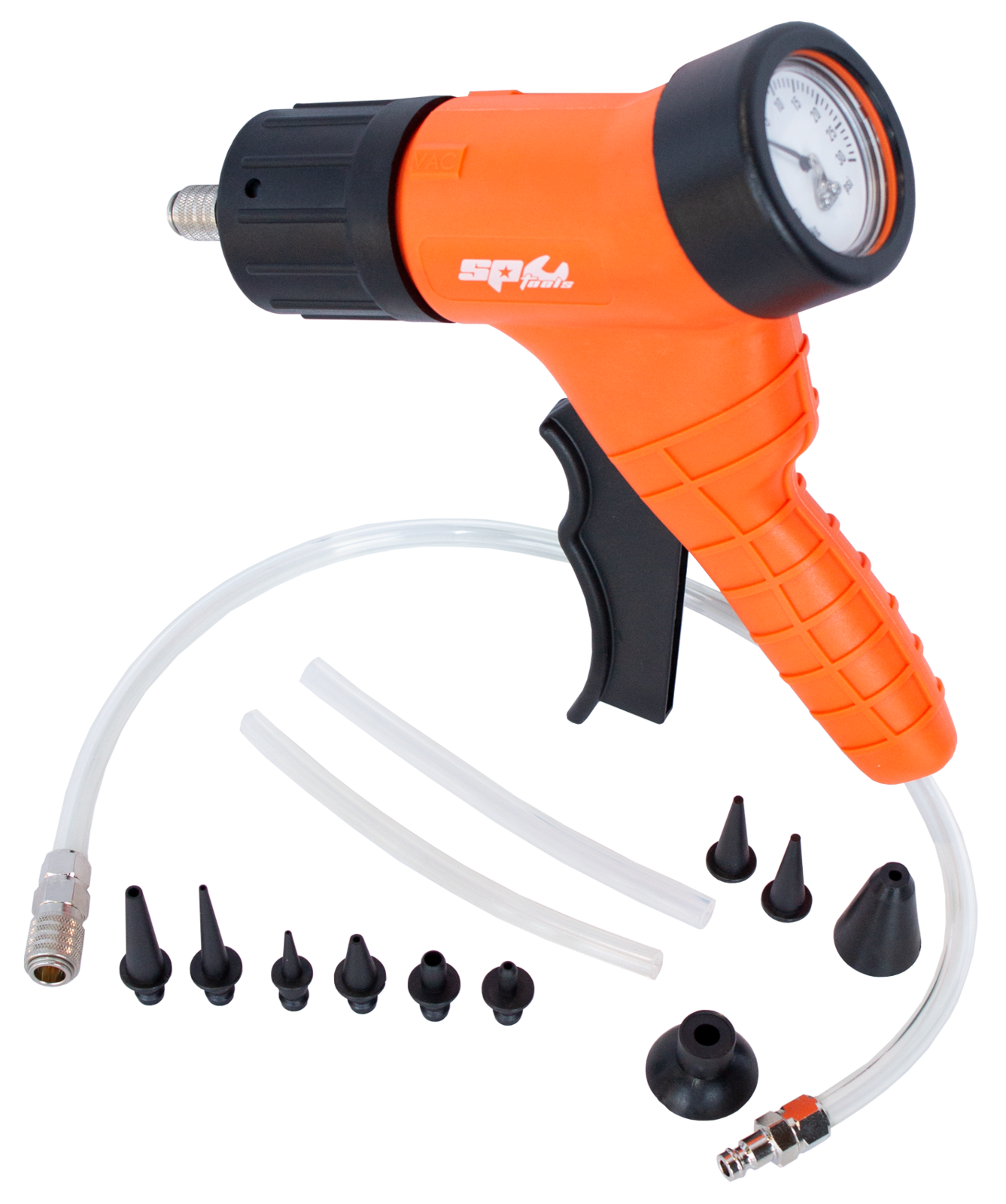

QUICK DIAL 2-WAY DIAGNOSTIC PUMP KIT SP TOOLS SP80020

QUICK DIAL 2-WAY DIAGNOSTIC PUMP KIT SP TOOLS SP80020

• High quality diagnostic tool
• 2-Way pressure and vacuum test functions
• Patented design
• - Intuitive rotary dial mode switch
• - Pistol grip with lever
• High volume efciency in both pressure and vacuum modes
• Manufactured from bre reinforced composite materials
• - Very high strength
• - High impact resistance
• - Excellent chemical resistance
• Integrated rear mount gauge
• - Optimum viewing angle
• - Maximum impact protection
• High quality silicon material hoses with quick couple hose fittings
• - Quick hose interchange
• - No leaks under vacuum or pressure
• Custom blow mold storage case

DUAL MODE PRESSURE AND VACUUM FUNCTIONS
PRESSURE MODE

• Monitor turbo charger boost pressure
• Test and adjust turbo charger waste gate actuators
• Test pressure operated central locking systems
• Test fuel tank vent valves
• Test one way valves
• Diagnose small engine faults

VACUUM MODE

• Test EGR valve
• Test fuel pressure regulator
• Test map sensor
• Test thermal vacuum switches
• Test electric vacuum switches
• Test one way valves
• Test HVAC valves
• Test automatic transmission modulator valve
• Test central locking systems

SPECIFICATIONS:

• Maximum Pressure: 30 psi
• Maximum Vacuum: 28 inHg
• Stroke Volume: 1 Cubic Inch (16cc)
• Pump Weight: 570g
