Kincrome Dual Stage Transmission Jack 1000kg K12134

Kincrome Dual Stage Transmission Jack 1000kg K12134

DESCRIPTION

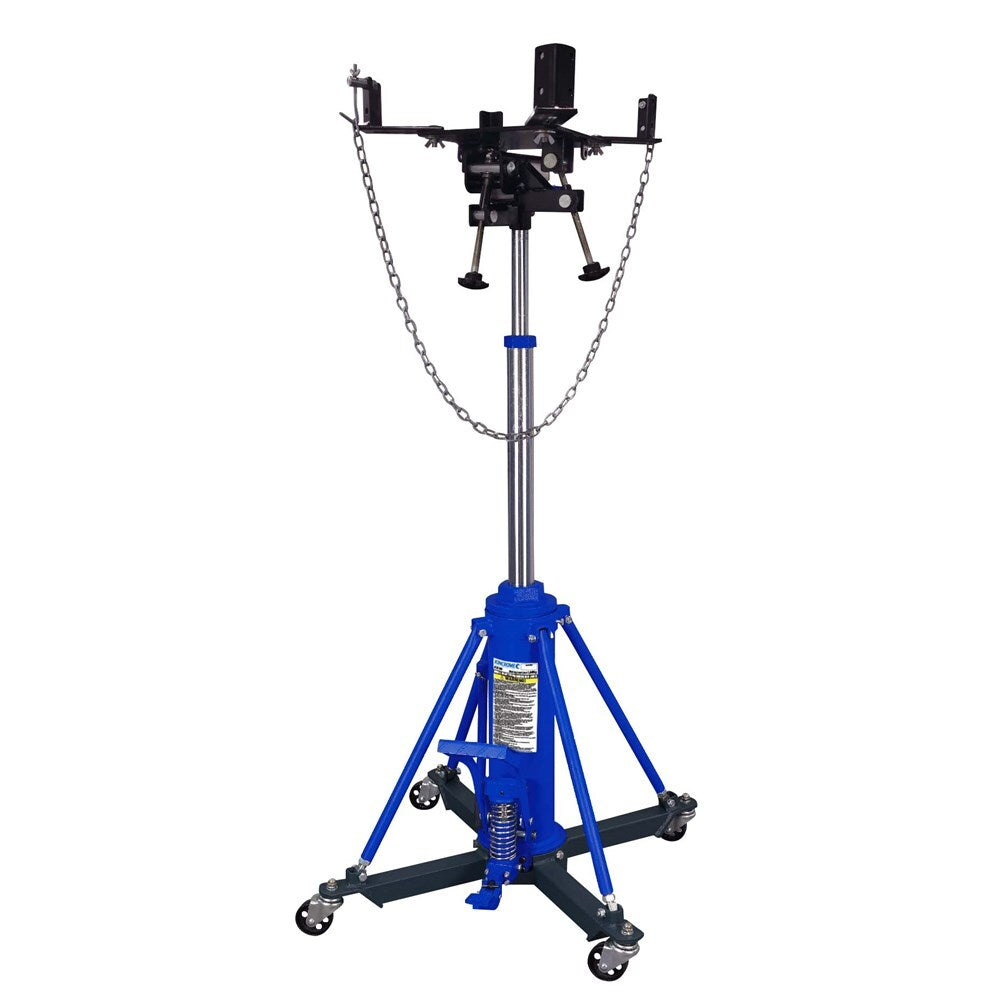

• The Kincrome 1,000kg Vertical Transmission Jack is designed predominantly as a support tool when installing and removing transmissions, featuring a hydraulic foot pedal system with smooth lift and descent.
• It features a universal mounting head that provides a tilt range of 7-120 forwards, backwards and to the side, as well as a manually operated hydraulic system with smooth lift and descent. Built to accommodate both large and small transmissions, this unit is ideal for use with FWD, RWD and 4WD cars or light trucks, offering a wide range of versatility.
• The wide base, 4-leg design offers safety, security and stability when removing and installing transmissions. It is enhanced by the heavy-duty cast iron swivel castors, providing easy maneuverability when under load.
• Kincrome Transmission Jacks incorporate high-quality seals, materials and design to ensure that they can stand up to professional use.

• 1,000kg working load limit
• Dual stage transmission jack
• Industrial workshop quality
• Takes the hard work and danger out of transmission removals and installations
• Suits FWD, RWD and 4WD light cars or trucks
• Adjustable transmission saddle and safety chains
• Steering handle for effortless maneuverability
• Wide 4-leg base gives ultimate stability
• Heavy duty cast iron swivel castors

• Rated Capacity: 1,000kg
• Lift Height: 985mm
• Height Raised: 1,905mm
• Height Lowered: 920mm
• First Stage Ram Stroke: 505mm
• Second Stage Ram Stroke: 480mm
• Saddle Tilt: 7-12?
• Base Dimensions: 660 x 660mm
• Saddle Size: 280 x 280 x 165mm
• Weight: 74kg
