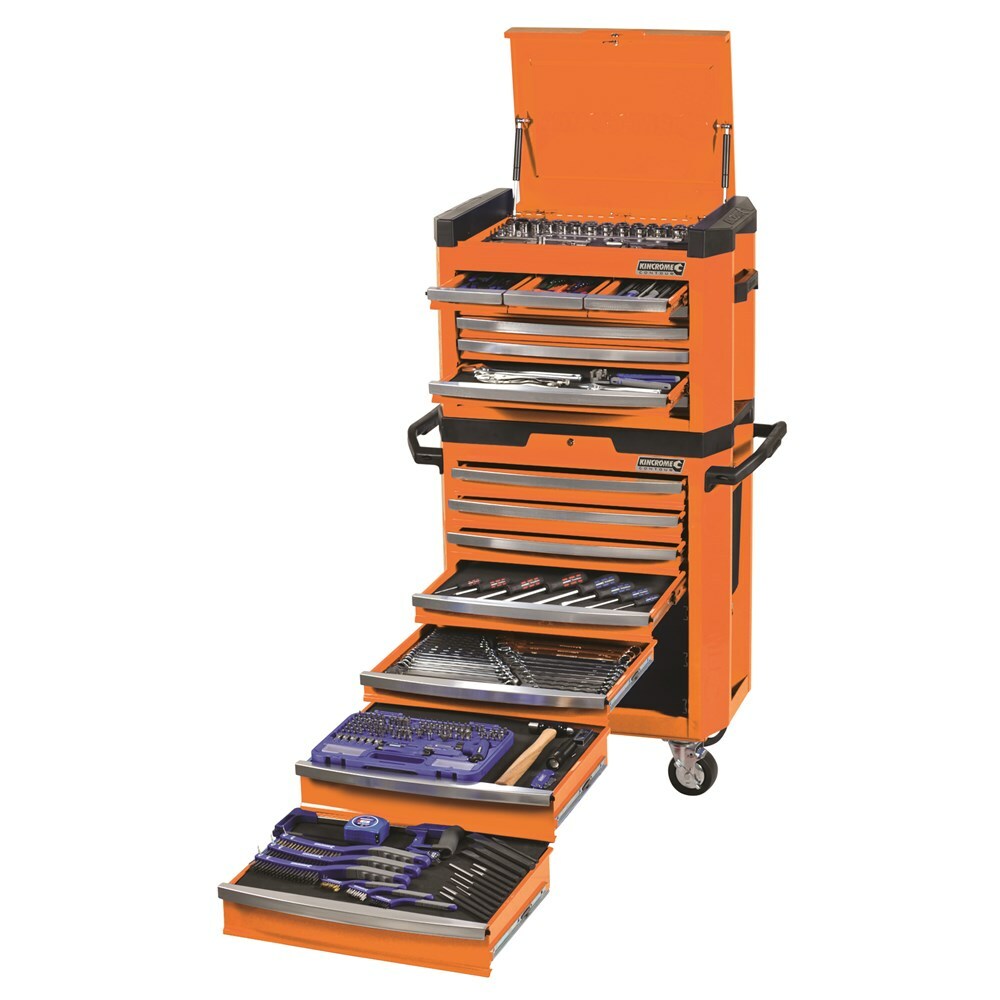

KINCROME CONTOUR Tool Workshop 329 Piece 1/4", 3/8" & 1/2" Drive K1501O

SERIES DESCRIPTION

CONTOUR

The Leading Edge In Tool Kits & Storage

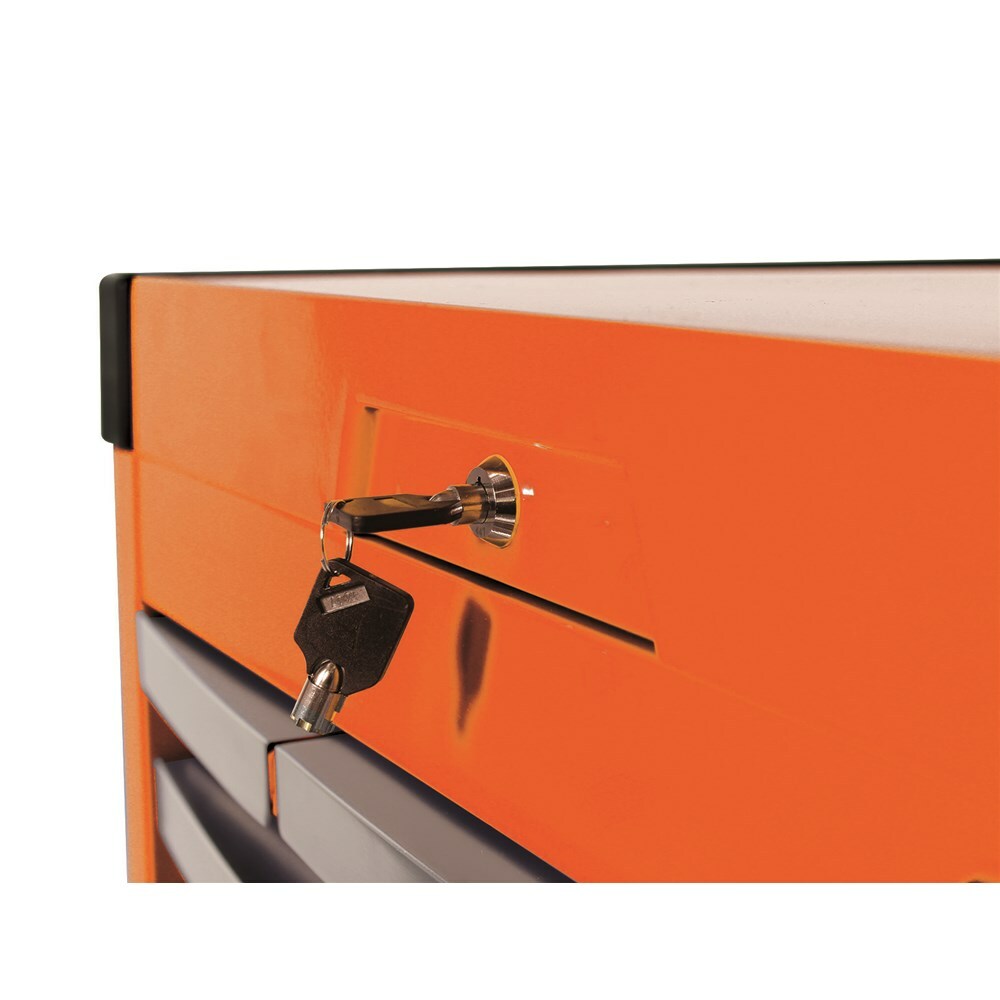

The CONTOUR range of Tool Kits, Chests and Trolleys is our premium level range, developed for those looking for trade quality tools and features. CONTOUR comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer. Designed in Australia by KINCROME, the CONTOUR range features a sleek contoured design, available in a variety of gloss colours with a UV protected powder coated finish. CONTOUR storage comes standard with a range of premium features, including; the chamfered Kincrome embossed side panels, Automatic Drawer Retention System (ADRS) locking system, heavy duty Big Grip side carry handles and a contoured trolley handle, side folding work trays, MDF worktop and four swivel heavy duty polyurethane castors for easy manoeuvrability.

CONTOUR offers a complete range of carts, chests, trolleys and kits to suit every need, from; 26 standard, 28 & 29 extra deep, 42 extra wide and 60 super wide. CONTOUR is fully modular and customisable, offering the flexibility to build your own premium workshop, the way you want.

CONTENTS

TOP TRAY - EVA60T - 89 Piece CONTOUR Socket & Accessories EVA Tray

METRIC SIZES:

9 Sockets 1/4" Square Drive:

4, 5, 6, 7, 8, 9, 10, 11, 12mm

10 Sockets 3/8" Square Drive:

9, 10, 11, 12, 13, 14, 16, 17, 18, 19mm

19 Sockets 1/2" Square Drive:

8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28, 30, 32mm

IMPERIAL SIZES:

9 Sockets 1/4" Square Drive:

3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"

7 Sockets 3/8" Square Drive:

3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"

15 Sockets 1/2" Square Drive:

3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1", 1.1/16, 1.1/8, 1.3/16, 1.1/4"

13 Socket Accessories:

1/4" Square Drive

Ratchet Handle Reversible Male

Spinner Handle 150mm (6")

1/4 Male x 3/8" Female Adaptor

Extension 150 mm (6")

3/8" Square Drive

Ratchet Handle Reversible Male

Extension 75mm (3")

Extension 150mm (6")

3/8 Female x 1/2" Male Adaptor

1/2" Square Drive

Ratchet Handle Reversible Male

Universal Joint

Extension 125mm (5")

Extension 250 mm (10")

Flex Handle 375mm (15")

Sliding T-Handle 250mm (10")

1/2" Female x 3/8" Male Adaptor

2 Spark Plug Sockets

16mm (5/8) x 3/8" Square Drive

21mm (13/16) x 1/2" Square Drive

EVA Size - 570mm x 460mm x30mm

DRAWER 1 - EVA63T - 4 Piece CONTOUR Pliers & Cutter EVA Tray

Combination Pliers 200mm (8")

Diagonal Cutting Pliers 200mm (8")

Long Nose Pliers 200mm (8")

Multi-Grip Pliers 250mm (10")

EVA Size - 130mm x 395mm x30mm

DRAWER 2 - EVA61T - 36 Piece CONTOUR Hex & TORX Key EVA Tray

Ball Point Hex Key Set Long Series 9 Piece AF

1/16" x 14 x 90mm, 3/16" x 28 x 160mm, 5/64" x 16 x 100mm, 1/4" x 32 x 180mm, 3/32" x 18 x 112mm, 5/16" x 36 x 200mm, 1/8" x 20 x 126mm, 3/8" x 40 x 224mm, 5/32" x 25 x 140mm

Ball Point Hex Key Set Long Series 9 Piece Metric

1.5 x 14 x 90mm, 5.0 x 28 x 160mm, 2.0 x 16 x 100mm, 6.0 x 32 x 180mm, 2.5 x 18 x 112mm, 8.0 x 36 x 200mm, 3.0 x 20 x 126mm, 10.0 x 40 x 224mm, 4.0 x 25 x 140mm

Tamperproof TORX Set Long Series 9 Piece

T10H x 14 x 90mm, T30H x 28 x 160mm, T15H x 16 x 100mm, T40H x 32x 180mm, T20H x 18 x 112mm, T45H x 36 x 200mm, T25H x 20 x 126mm, T50H x 40 x 224mm, T27H x 25 x 140mm

TORX Set Long Series 9 Piece

T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm, T45 x 44 x 210mm, T50 x 50 x 235mm

EVA Size - 130mm x 395mm x30mm

DRAWER 3 - EVA62T - 5 Piece CONTOUR 250mm File Set EVA Tray

Hand File Bastard Cut - 10" (250mm)

Hand File 2nd Cut - 10" (250mm)

Half Round File Bastard Cut - 10" (250mm)

Square File Bastard Cut - 10" (250mm)

Round File Bastard Cut - 10" (250mm)

EVA Size - 130mm x 395mm x30mm

DRAWER 4

Adjustable Wrench 300mm (12")

Adjustable Wrench 200mm (8")

Locking Pliers Curved Jaw 250mm (10")

Automatic Wire Stripper with Crimper

DRAWER 5

8 Piece TORQUEMASTER Screwdriver Set

4 Screwdrivers - Blade:

3mm x 75mm, 5mm x 100mm, 5mm x 150mm, 6mm x 100mm, 8mm x 150mm

4 Screwdrivers - Phillips:

No.0 x 75mm, No.1 x 75mm, No.2 x 100mm, No.3 x 150mm

DRAWER 6 - EVA64T - 30 Piece Contour Combination Spanner EVA Tray - Mirror Polish

17 Metric Combination Spanners

6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

13 Imperial Combination Spanners

1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1"

EVA Size - 540mm x 395mm x30mm

DRAWER 7

Universal Bit Set 128 Piece

6 x Blade Bits - 1/8", 5/32", 3/16", 7/32", 1/4", 9/32"

9 x Metric Blade Bits - 3, 4, 4.5, 5, 5.5, 6, 6.5, 7, 8mm

5 x Phillips Bits - No. 0, 1, 2, 3, 4

4 x Pozi Bits - No. 0, 1, 2, 3,

12 x TORX Bits - T6, T7, T8, T10, T15, T20, T25, T27, T30, T40, T45, T50

11 x Tamperproof TORX Bits - T6H, T7H, T8H, T9H, T10H, T15H, T20H, T25H, T27H, T30H, T40H

8 x Imperial Hex Bits - 5/64", 3/32", 7/64", 1/8", 5/32", 3/16", 7/32", 1/4"

10 x Metric Hex Bits - 1.5, 2, 2.5, 3, 4, 5, 5.5, 6, 8, 10mm

12 x Imperial Tamperproof Hex Bits - 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 3/8"

6 x Metric Tamperproof Hex Bits - 2, 2.5, 3, 4, 5, 6mm

5 x Imperial Ball Point Hex Bits - 1/8", 5/32", 3/16", 7/32", 1/4"

6 x Metric Ball Point Hex Bits - 2.5, 3, 4, 5, 5.5, 6mm

3 x Spline Bits - M5, M6, M8

3 x Clutch Bits - 5/32", 3/16", 1/4"

4 x Spanner Bits - 4, 6, 8, 10

4 x Robertson Bits - S0, S1, S2, S3

4 x Tri Wing Bits - No.1, No. 2, No. 3, No. 4

3 x Offset Phillips (Torq) bits - No. 6, No. 8, No. 10

3 x Imperial Nut Driver - 1/4", 5/16", 3/8"

3 x Metric Nut Drivers - 6, 8, 10mm

2 x Nut Driver Adaptors - 25mm, 50mm

1 x Straight Magnetic Driver Handle

1 x T-Handle Magnetic Driver Handle

1 x Wing Nut (Hook Driver)

1 x Quick Release Coupler

1 x Bit Adaptor

Folding Lock Back Utility Knife 150mm

10 Pack Spare Knife Blades

Ball Pein Hammer Hickory Shaft 16oz (454gm)

CREE L.E.D Torch - AAAx3 Batteries

DRAWER 8

3 Piece Wire Brush Set (Small)

Nylon, Brass & Stainless Steel

3 Piece Wire Brush Set (Large)

Nylon, Brass & Stainless Steel

12 Piece Punch & Chisel Set

3 Cold Chisel: 16mm, 19mm, 25mm

4 Pin Punches: 2.5mm, 4.0mm, 5.0mm 6.5mm

1 Centre Punch: 5mm

1 Drift Punch: 5mm

2 Nail Punch: 2.5mm, 5.0mm

1 Cape Punch

Hacksaw Frame Heavy Duty 12" (300mm)

Tape Measure Metric 8 Metre

8 Drawer Kincrome CONTOUR Tool Chest

475mm x 745mm x 485mm - 41kg (empty)

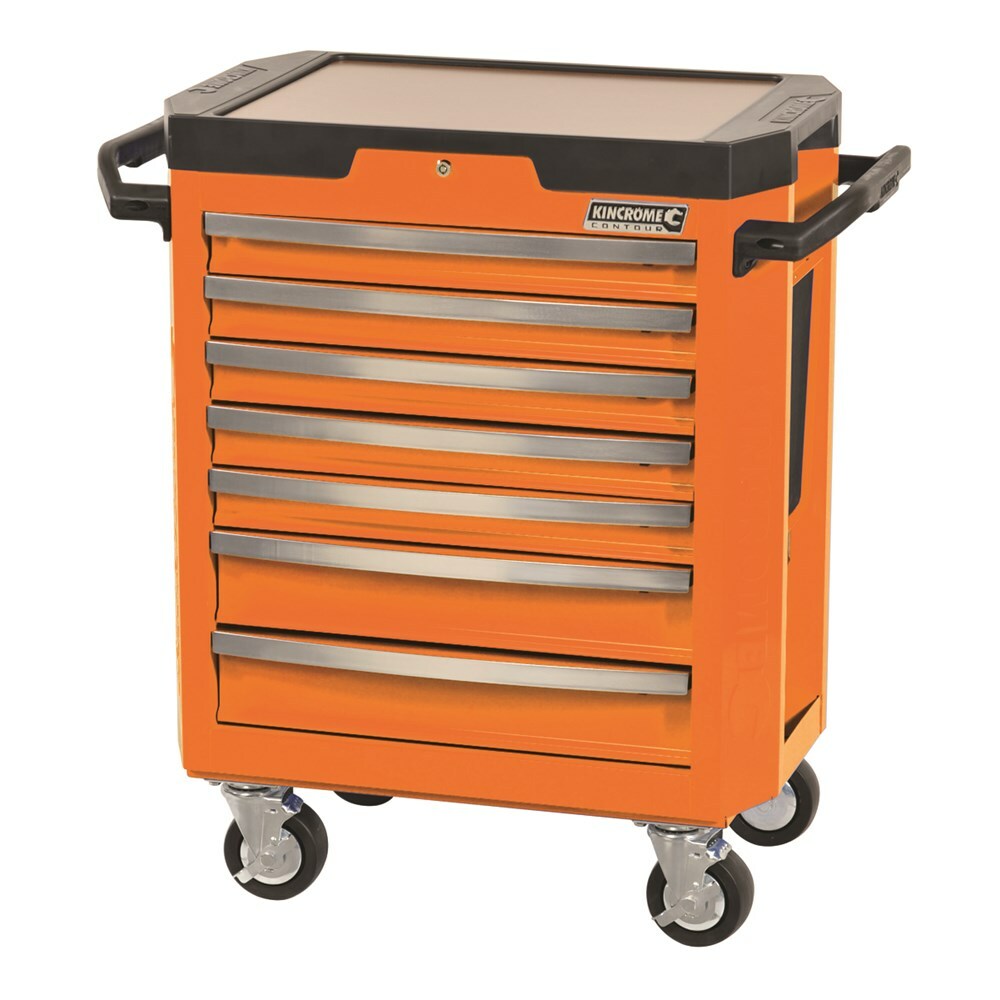

7 Drawer Kincrome CONTOUR Tool Trolley

475mm x 745mm x 940mm - 60kg (empty)

BAR CODE

9312753974790

TECHNICAL SPECIFICATIONS

Drawers 15

Size 26"

Tray Type EVA

Tool Chest Measurements 745 x 475 x 485MM

Tool Trolley Measurements 745 x 475 x 940MM

Castor Size 5" x 2"

Finish UV Stabilised Powder Coat

Material Heavy Gauge Steel
