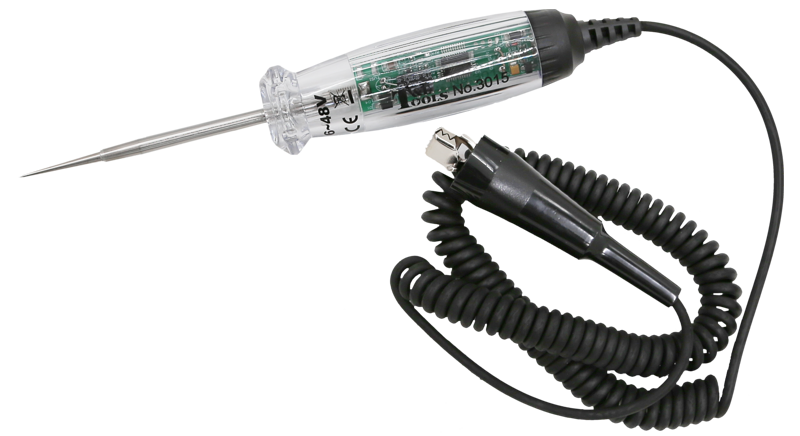

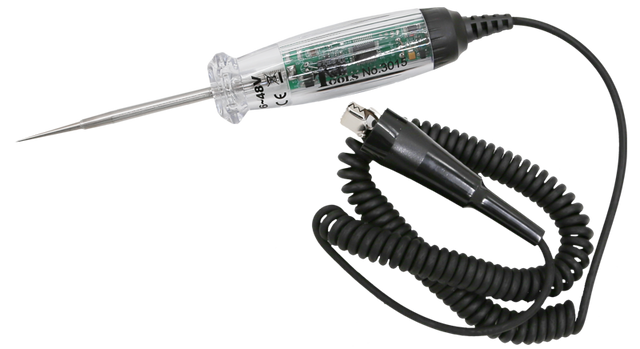

Digital LCD Circuit Tester 6,12,24,36,48 Volt DC T&E Tools 3015

Digital LCD Circuit Tester 6,12,24,36,48 Volt DC

• This circuit tester is a simple but extremely useful tool.

  If you are trying to diagnose and troubleshoot an electrical problem, simetimes a circuit tester can help you rule out possible causes much more quickly and easily than a digital multi-meter. It's quick, easy and very versatile, so the test light style of the circuit tester can be a lifesaver. You can use it to check any positive circuit. Headlights not coming on? If the fuse is good, you can use a circuit tester to trace the wiring path and find out what's gone wrong. If the positive path is intact, you can also use the test light to check the grounding points of the circuit.

  Feature

  Digital display to read the accurate voltage value.
  Avaliable in 6, 12, 24 & 48 Volts DC system.
  LED indication for power (Red) and ground (Green).
  Stainless steel testing probe.
  Voltage measurement from 4 to 60 Volts DC.
  Spring cable, which is able to extend to 3 meters.
  Small testing current < 10mA.

  Specification

  Voltage: 4 to 60 VDC
  Testing Current: <10mA
  Display: LCD
  Resolution: 0.1V
  Accuracy: 4 to 10 VDC + (1%+5 Digits)
  10 to 60 VDC + (1%+3 Digits)
  LED Indication: Green(-) / Red (+)
  Cable Length: Spring Cable, maximum 3 metre.
  Operating Temperature: -10 to 500C
  Operating Humidity: <80%
