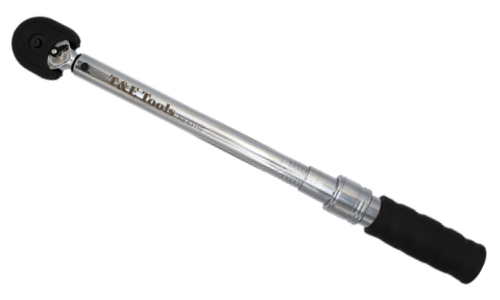

20-110Nm x 3/8"Dr Clicker Torque Wrench T&E Tools 63110

20-110Nm x 3/8"Dr Clicker Torque Wrench T&E Tools

• 63110 3/8" Square Drive
• Range 20 to 110Nm (14.7 to 81.3Ft/Lb) Graduation 0.5Nm & 0.37Ft/Lb Torqure both left & right hand direction Features an audible click and/or impulse when torque setting is reached
• Locking collar prevents accidental change of torque setting while in use
• 32 Tooth ratchet mechanism
• Supplied in blow mold storage case
• 1
• Heat-treated chrome alloy ratchet gear and pawl
• 2
• Reinforced pawl blocks for maximum strength
• 3
• Pull down locking ring above handle grip securely holds set torque value
• 4
• Permanently etched newton metre scale and laser mark foot pound scale on the reverse side
• 5
• Signals torque in both left & right directions
• 6
• Accurate to 4% clockwise direction and 6% counterclockwise direction, from 20% of full scale to full scale reading
• 7
• Supplied with calibration certificate at time of manufacture
• Widely used for maintenance operations and for assembly when changing torque requirements demand on line adjustments
• Operation: Principal component of this type of wrench is a helically wound coil spring
• When grip is turned, spring compression changes the load on the over the centre torque mechansim
• When the desired torque is achieved the load on the over the centre mechanism is overcome by the applied torque and an audible signal and impulse is produced
• Torque Wrench Capacity: To determine torque wrench capacity best suited for an application, many factors must be considered
• However, as a recommendation, use a torque wrench in the middle 50% of the overall capacity of the tool
• This will result in longer tool life, ease of use for the operator & increased accuracy from the "Clicker" type torque wrench
• Meets the following standards: BS6703: 1988, ISO 6789-1: 2017, BS EN ISO 6789:2003, ASME B107.14, Certificate of calibration is packed with every T&E torque wrench
• The actual certification readings & individual torque wrench serial number are included
• The torque wrench is calibrated at the factory, & certified to meet the accuracy specified in ASME B107.14 standard and was calibrated on a torque testing machine, traceable to the national measurement laboratory (NML) of ROC
• (Taiwan) The Measurement Technology Co., Ltd
• laboratories are in compliance with ISO/IEC 17025
• The warranty against defects in materials and workmanship for T&E Tools
  • testing instruments is warranted for twelve (12) months from the date of original purchaser
  • Made in Taiwan to the quality standards and specifications required by T&E Tools
    • Pty Ltd

    • .
